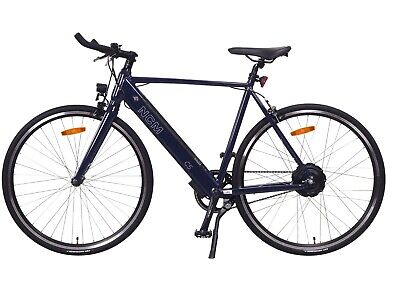

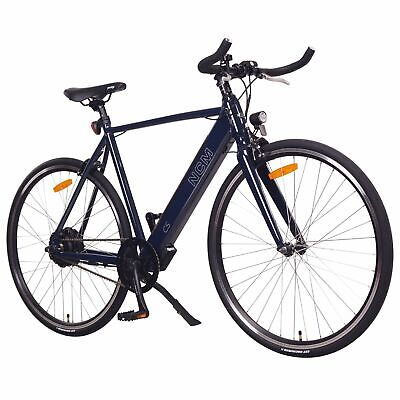

NCM C5 Trekking E-Bike, City-Bike 250W, 36V 12Ah 432Wh Battery

NCM C5 Trekking E-Bike, City-Bike 250W, 36V 12Ah 432Wh Battery [Blue- Large]

Minimal Design, Maximal Performance. The NCM C5 is a fully equipped E-bike for city commutes. Whether you are trying to get to work on time, while being sweat-free, or need to rush to your favorite place in style, the all-new NCM C5 lets you cover your daily journeys with ease. This E-bike is designed with a tough aluminium frame, a strong rigid handlebar, a saddle for improved ergonomics and performance, and 250W Das-Kit rear-drive motor with intelligent torque sensor technology. The high-top tube makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road.



Key Features

1. Ergonomic bicycle Grips
2. All important controls are easily accessible
3. 250W Das-Kit rear-drive motor with intelligent torque sensor technology
4. Supplied with 36V 432Wh to deliver a high output power
5. Removable and lockable 36V 432Wh extra large battery capacity
6. Reach up to 100 km (depending on the conditions)
7. CST, C1808, 700*30c Black tires



In the Box:

1. 1 x NCM C5
2. 1 x 36V charger
3. 1 x tool kit





Intelligent Drive System

Integrated Battery

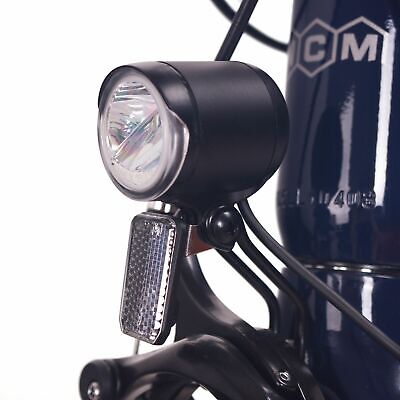

Front Light

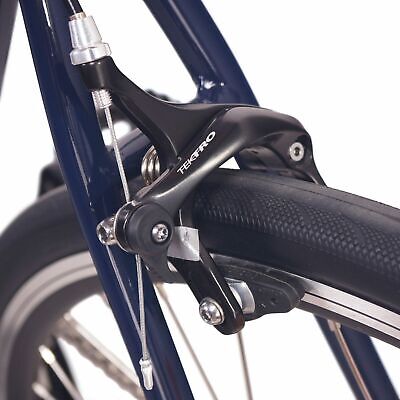

Caliper Brakes

Specifications

	NCM C5 Medium	NCM C5 Large
Motor	Das kit, X2, 36V 250W, 25km/h	Das kit, X2, 36V 250W, 25km/h
Battery	Das-Kit, I6-3612A, 36V 12AH, 432WH	Das-Kit, I6-3612A, 36V 12AH, 432WH
Display	Das-kit E2 Display	Das-kit E2 Display
Charger	Das-Kit, DC363, 36V2A	Das-Kit, DC363, 36V2A
Frame	Alu. 6061,510MM	Alu. 6061, 560MM
Forks	ZF, 5058-02, 27.5”, rigid fork	ZF, 5058-02, 27.5”, rigid fork
Braking System	Tektro Dual pivot caliper Brakes,R315	Tektro Dual pivot caliper Brakes,R315
Saddle	Selle Royal, Prestige-1307URN Black	Selle Royal, Prestige-1307URN Black
Tyre	CST,C1808，700*30c Black	CST,C1808，700*30c Black
Handle Grips	VELO,VLT-2019HD2-R	VELO,VLT-2019HD2-R
Pedal	Wellgo，C280DU	Wellgo，C280DU
Range	Up to 100 km	Up to 100 km
Weight	18 kg	18 kg



Sizing Chart

Cm   A B C D E
Stand Over Height Wheel Base Frame Height Min/Max Seat Height Reach
C5 Medium	174	78	104	51	88-108	39
C5 Large	175	80	105	56	91-112	39
